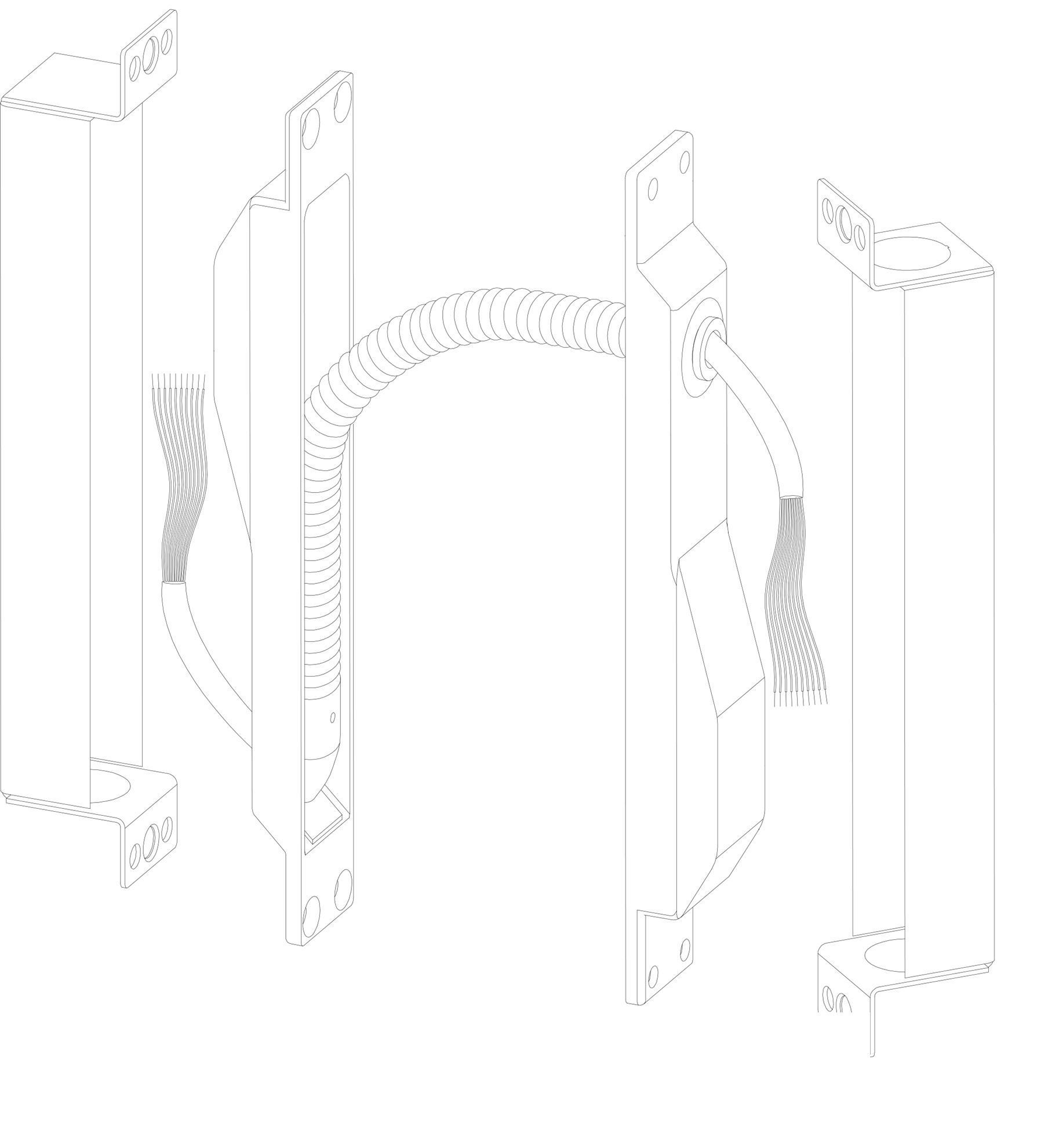

PT1000SCEZ Power Transfer

Picture of PT1000SCEZ Power Transfer
Picture of PT1000SCEZ Power Transfer Picture of PT1000SCEZ Power Transfer

PT1000SCEZ Power Transfer

Electrical Power Transfers
$0.00
PT1000SCEZ (Molex Connectors)   (10) 24 AWG Wires Max. Rating: 24 VDC, 1A



  • Features:
    • Power Transfer (10) 24 AWG Wires for Swing Clear Application with EZ Connectors Molex® Micro-Fit 3.0
    • Unit mortises into the edges of the door and frame and is completely concealed when the door is in the closed position.
    • All metal construction including backboxes - NO PLASTIC PARTS
    • Ideal for high abuse or heavy traffic situations
    • UL/ULC Listed for use on fire doors
    • Packaged individually with fasteners for wood, steel, or aluminum doors and frames
    • Approximate shipping weight: 3 lbs.
    • Patent Pending
    • Matches competitor's door and frame prep

  • Standard applications:
    • 1-3/4" - 2-1/4" Door thickness
    • For use with Swing Clear Hinges
    • Door Openings 90° - 180°
Picture for finish S2 - Painted Brass (to match US4)
S2 - Painted Brass (to match US4)
Picture for finish S3 - Painted Bronze (to match US10)
S3 - Painted Bronze (to match US10)
Picture for finish S4 - Painted Black
S4 - Painted Black
Picture for finish S5 - Painted Dark Bronze (to match US10B)
S5 - Painted Dark Bronze (to match US10B)
Picture for finish S8 - Painted White
S8 - Painted White
Picture for finish US28 - 628 - Satin Aluminum
US28 - 628 - Satin Aluminum
  • "SEC" Fasteners
