PT1000SC Power Transfer

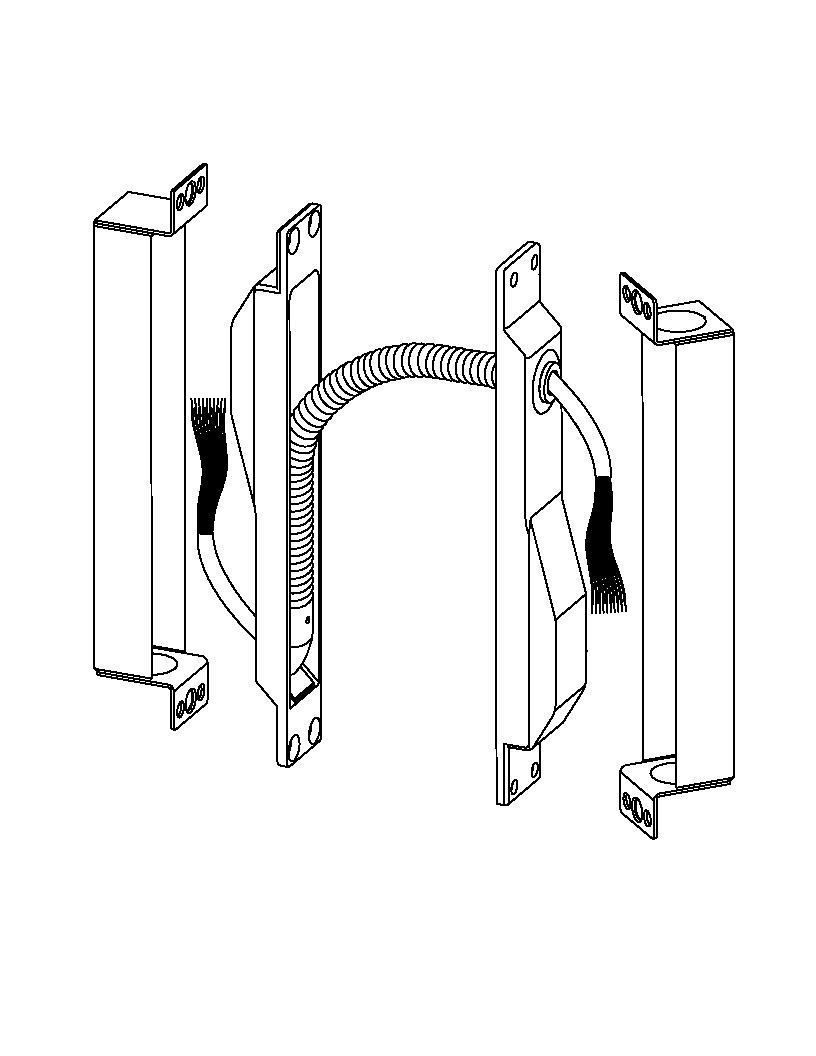

Picture of PT1000SC Power Transfer

PT1000SC Power Transfer

Electrical Power Transfers

$0.00

PT1000SC

(10) 24 AWG Wires

Max. Rating: 24 VDC, 1A

Features:
- Power Transfer (10) 24 AWG Wires for Swing Clear Applications
- Unit mortises into the edges of the door and frame and is completely concealed when the door is in the closed position.
- All metal construction including backboxes - NO PLASTIC PARTS
- Ideal for high abuse or heavy traffic situations
- UL/ULC Listed for use on fire doors
- Packaged individually with fasteners for wood, steel, or aluminum doors and frames
- Approximate shipping weight: 3 lbs.
- Patent Pending
- Matches competitor's door and frame prep

Standard Applications:
- 1-3/4" - 2-1/4" Door thickness
- For use with Swing Clear Hinges
- Door Openings 90° - 180°

Picture for finish US28 - 628 - Satin Aluminum

US28 - 628 - Satin Aluminum

Picture for finish S2 - Painted Brass (to match US4)

S2 - Painted Brass (to match US4)

Picture for finish S3 - Painted Bronze (to match US10)

S3 - Painted Bronze (to match US10)

Picture for finish S4 - Painted Black

S4 - Painted Black

Picture for finish S5 - Painted Dark Bronze (to match US10B)

S5 - Painted Dark Bronze (to match US10B)

Picture for finish S8 - Painted White

S8 - Painted White

"SEC" Fasteners

Templates

Order Forms

Power Transfer Prep Order Form - Must Download
