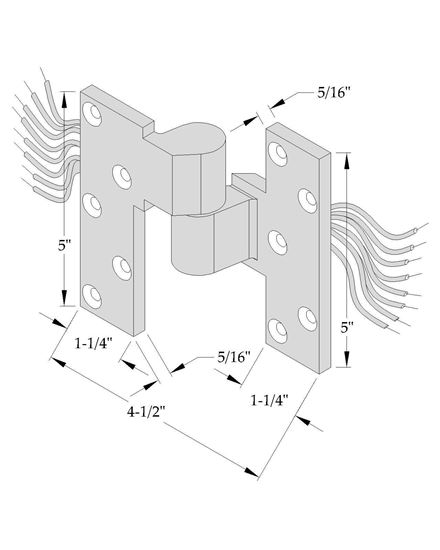

EL019 Intermediate Pivot Lead-Lined - Electrified - 3/4" Offset

EL019 Intermediate Pivot Lead-Lined - Electrified - 3/4" Offset

$0.00
  • Features:
    • Provides electrical power transfer from the frame to the door
      • (8) 30 AWG Wires
    • Mortises into side jamb and hinge edge of door
    • Handed - Specify LH or RH
    • For use with 3/4" offset lead-lined pivot sets
    • 1-3/4" lead - lined doors
    • Helps maintain door alignment
    • UL Listed for use on 3-hour fire rated doors - Standard
    • Heavy duty stainless steel needle bearings
    • Stainless steel base material
    • Average weight per unit = 3 lbs
US32D - 630 - Satin Stainless Steel
US26D - 626 - Satin Chrome
US10B - 613 - Oil Rubbed Bronze
US10 - 612 - Satin Bronze
US4 - 606 - Satin Brass
S1 - 689 - Painted Aluminum
S2 - Painted Brass (to match US4)
S3 - Painted Bronze (to match US10)
S4 - Painted Black
S5 - Painted Dark Bronze (to match US10B)
S8 - Painted White
US3 - 605 - Bright Brass
US32 - 629 - Bright Stainless Steel
US26 - 625 - Bright Chrome
  • "EXT-SPIN" Extended Spindle for Bottom Pivot (1/8” Increments up to 2” Longer than Standard)
  • "EXT-PIN" Extended Pin for Top Pivot (1/8” Increments up to 3/4” Longer than Standard)
  • "EZ" Add Molex® Microft 3.0 “EZ” Connectors to Electrifed Pivots
  • "SEC" Fasteners
