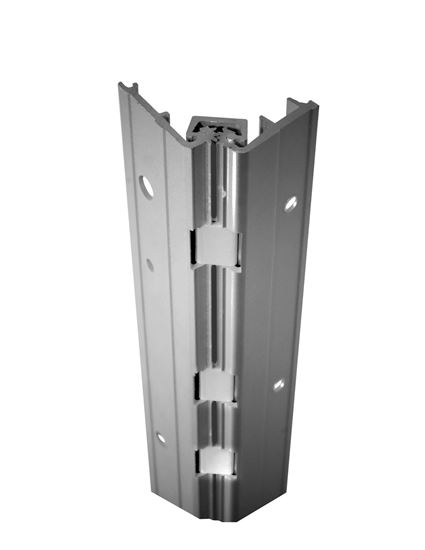

A575HD Aluminum Continuous Gear Hinges Full Surface

A575HD Aluminum Continuous Gear Hinges Full Surface

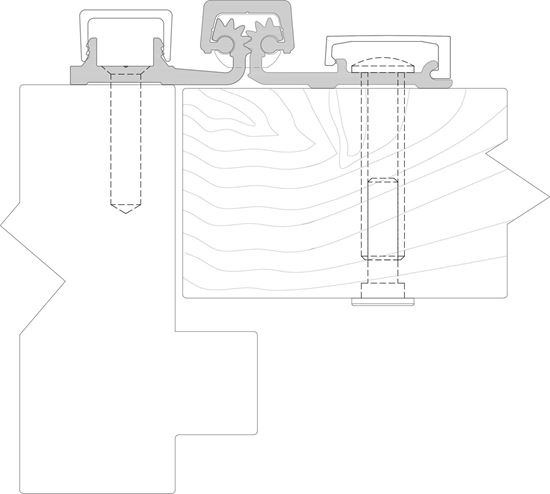

Standard / Heavy Duty Full Surface, Narrow Frame Leaf, 1/16" Inset
$0.00
  • Full Surface, Heavy Duty
  • 1/16" Door Inset
  • For narrow-faced frames
  • 48" door width maximum
  • 450 lbs. door weight maximum
  • Average weight per unit = 11 lbs

  • Fasteners:
    12-24 X 5/8" Phillips Flat Head, Undercut, Self Drilling Machine Screw, S.S.

  • Standard Lengths:
    79", 83", 85", 95" and 120" + Custom Sizes Available

  • Fire Rating:¬†
    • Approved for use on metal swinging type fire doors rated up to and including 90 minutes (Specifiy "FR" option for 3 hour rating)
    • Approved for use on wood swinging type fire doors rated up to and including 60 minutes (Specifiy "FR" option for 90 minute rating)
Clear Anodized
Dark Bronze Anodized
Black Anodized
  • "FR" Fire Studs
  • "WEDGE-FS" Adjustable Safety Wedge for Full Surface Models
  • "AHT-FS" Advanced Hospital Tip for Full Surface Ligature-Resistant Applications (Specify Handing)
  • "LR-BEAR" Ligature-Resistant Bearings
  • "DD" Dutch Door Prep
  • "SEC" Fasteners
  • "CUT" Cut to Custom Length
  • "TR" Tamper-Resistant (Hospital Tip, Every Other Bearing has a Set Screw) & Security Fasteners (Specify Door & Frame Material)
  • "TR-AHT-FS" Tamper-Resistant (Advanced Hospital Tip, Every Other Bearing has a Set Screw) & Security Fasteners (Specify Door & Frame Material) for Half/Full Surface
  • "SC" School Cap
  • "SPLICE" Spliced Hinge
  • "LL" Lead-Lined Cover (Half Surface & Full Surface - Door Leaf Only)
  • "SL" - Sheared Leaf
  • "THICK" Special Door Thickness
  • "CUSTOM HOLE" Custom hole locations
  • "CUSTOM FINISH"
