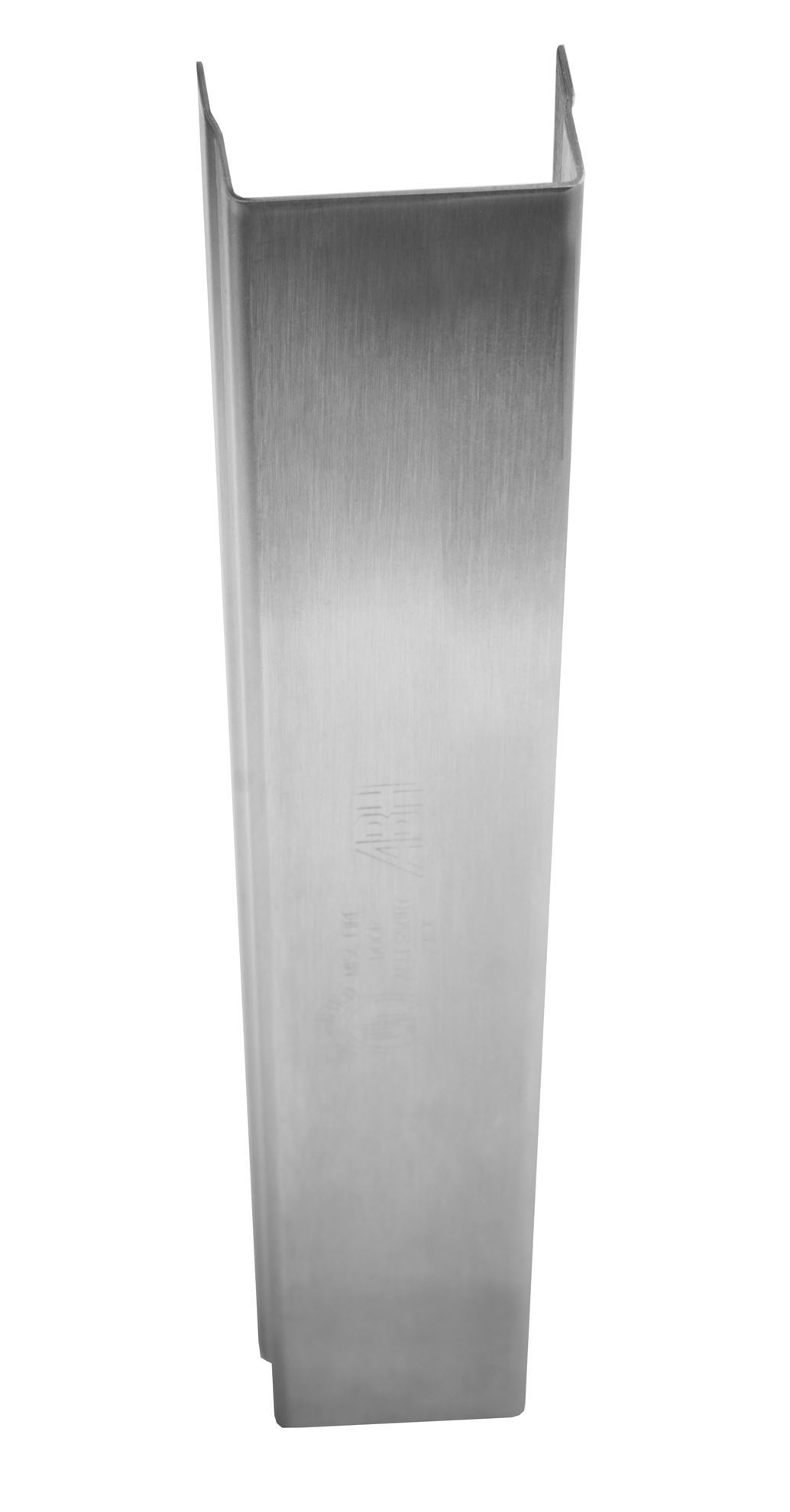

A538BO Edge Guard

A538BO Edge Guard

Bevel Edge Non-Mortised
$0.00
  • Standard Features
    • .050" material thickness - 304 stainless steel
    • Fasteners provided - #6 x 5/8" Phillips flat head, undercut sheet metal screws
    • Specify any length up to 120"
    • For use on 1-3/4" door
    • Average weight per unit = 3.5 lbs

  • Fire Rating
    • ABH edge guards come standard UL fire rated for use on:
    • Wood or plastic-covered wood composite fire doors rated up to and including 1-1/2 hours
    • Hollow metal, steel-covered, composite type fire doors rated up to and including 3 hours

  • Options
    • Custom Leg sizes available
    • Custom door thikcnesses available
US32D - 630 - Satin Stainless Steel
US3 - 605 - Bright Brass
US4 - 606 - Satin Brass
US10 - 612 - Satin Bronze
US10B - 613 - Oil Rubbed Bronze
US32 - 629 - Bright Stainless Steel
  • "SEC" Fasteners
  • "CUT OUTS" ABH offers numerous cut-outs for door hardware
