A502 Stainless Steel Pin & Barrel Continuous Hinges Full Surface

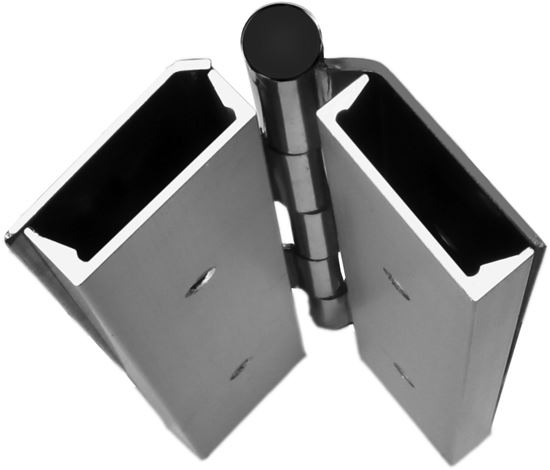

Picture of A502 Stainless Steel Pin & Barrel Continuous Hinges Full Surface
Picture of A502 Stainless Steel Pin & Barrel Continuous Hinges Full Surface Picture of A502 Stainless Steel Pin & Barrel Continuous Hinges Full Surface Picture of A502 Stainless Steel Pin & Barrel Continuous Hinges Full Surface

A502 Stainless Steel Pin & Barrel Continuous Hinges Full Surface

$0.00
  • Features:
    • Full Surface, Heavy Duty
    • No door inset, flush mount
    • 48" door width maximum
    • 600 lbs. door weight maximum
    • Average weight per unit = 11 lbs per unit
    • Frame and door leaf fastener covers are clear anodized aluminum

  • Fasteners:
    • 1/4-20 x 3/4" round head self-drilling tek machine screws, zinc plated for door

  • Lengths:
    • 78-3/4"
    • 83-1/8"
    • 85"
    • 95"
    • 118-3/4"

  • Fire Rating: Tested and certified by UL® (U.S.A. and Canada) on 4'0" x 10'0" fire rated doors, based on the following
    • 20 minutes - wood doors
    • 90 minutes hollow metal and composite wood fire doors
    • 3 hours - hollow metal doors
Picture for finish US32D - 630 - Satin Stainless Steel
US32D - 630 - Satin Stainless Steel
  • "HT" Hospital Tip
  • "WEDGE" Safety Wedge for Half Surface & Full Surface Models
  • "DD" Dutch Door Prep
  • "STUD" Security Studs
  • "SEC" Fasteners
  • "CUT" Cut to Custom Length
  • "SNB" Sex Bolts for Surface Mounted Door Portion (A502 & A503 Only)
  • "SPLICE" Spliced Hinge
  • "LL" Lead-Lined Cover (Half Surface & Full Surface - Door Leaf Only)
  • "CUSTOM FINISH"
  • "CUSTOM HOLE" Custom hole locations
