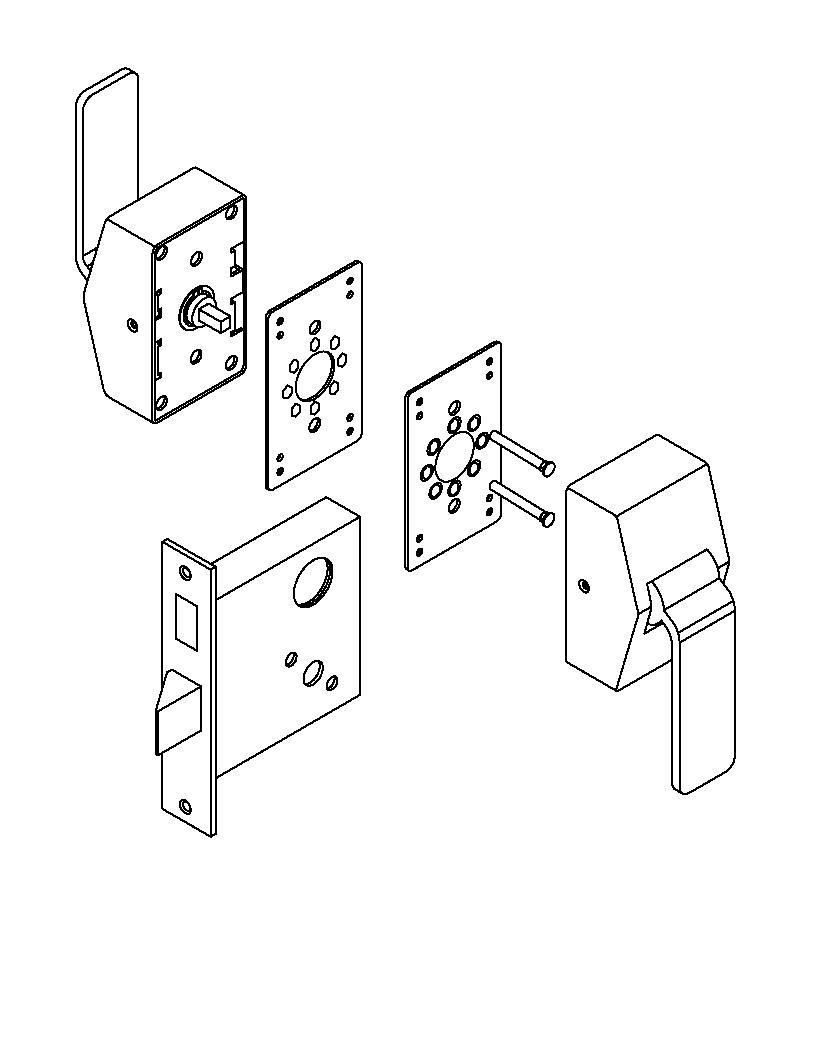

6600 Series Mortise Lock Hospital Latch

Picture of 6600 Series Mortise Lock Hospital Latch
Picture of 6600 Series Mortise Lock Hospital Latch Picture of 6600 Series Mortise Lock Hospital Latch Picture of 6600 Series Mortise Lock Hospital Latch Picture of 6600 Series Mortise Lock Hospital Latch Picture of 6600 Series Mortise Lock Hospital Latch

6600 Series Mortise Lock Hospital Latch

Mortise Lock Standard Hospital Latch
$0.00
  • Features:
    • Mortise lock body provided - specify function
    • Mortise lock body only available in 2-3/4" backset
    • 4-7/8" ASA strike supplied standard
    • Mortise lock cylinder and cam not provided
      • Uses clover leave-type cam - Best®* C258 or equal (except 6638 and 6645 models, which use Best®* C293 or equal on outside)
      • 6 Pin Cylinder = 1-1/8" long
      • 7 Pin Cylinder = 1-1/4" long
    • 1-3/4" standard door thickness (specify if greater than 1-3/4")
    • Meets ADA requirements
    • All mounting hardware goes through mortise lock body prep - no additional prep required
    • One continuous spring provides a smoother operation and an extended life for the unit
    • Trim is non-handed; however, the mortise lock body is handed (can be changed in field)
    • Can be mounted vertical or horizontal (with handles pointing toward hinge edge of door)
      • For ortise lock functions where thumb turn or cylinder will be used, either mount the trim horizontal or select "J" option (Junior Covers) to achieve required clearance
    • Handles can be mounted up or down by simply rotating trim 180°
    • UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
    • 3/4" Latch Bolt Throw
    • Average weight per unit = 7 lbs
    • Patent# 5,730,478 & #6,196,599
Picture for finish US32D - 630 - Satin Stainless Steel
US32D - 630 - Satin Stainless Steel
Picture for finish US4 - 606 - Satin Brass
US4 - 606 - Satin Brass
Picture for finish US10 - 612 - Satin Bronze
US10 - 612 - Satin Bronze
Picture for finish US10B - 613 - Oil Rubbed Bronze
US10B - 613 - Oil Rubbed Bronze
Picture for finish US26D - 626 - Satin Chrome
US26D - 626 - Satin Chrome
Picture for finish US3 - 605 - Bright Brass
US3 - 605 - Bright Brass
Picture for finish US26 - 625 - Bright Chrome
US26 - 625 - Bright Chrome
Picture for finish US32 - 629 - Bright Stainless Steel
US32 - 629 - Bright Stainless Steel
  • "SEC" Fasteners
  • "THICK" Special Door Thickness
  • "L" Lead-Lined
  • "AM" Anti-Microbial Coating
  • "EL" Electronically Locked
  • "EU" Electronically Unlocked
  • "RX" Request to Exit
  • "H" Hip Paddle
  • "EX" Extended Handle
  • "X" Slip-On Handle Extension
  • "PL" Entrance Only
  • "PS" Exit Only
  • "AB" Asylum Trim on Both Sides - 6200, 6600 & 6700 models (Specify B or C Knob)
  • 'PLA" Push/Pull Trim on pull side and Asylum Knob on push side (Specify B or C Knob) - 6600 or 6700
  • "PSA" Push/Pull Trim on push side and Asylum Knob on pull side (Specify B or C Knob) - 6600 or 6700
  • "J" Junior Cover
  • "RC" Round Cover
  • "P" Engraved Handles "PUSH" or "PULL"
