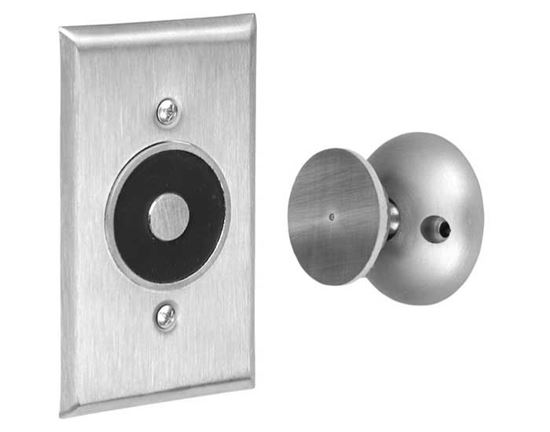

2400 Electromagnetic Door Holder

Picture of 2400 Electromagnetic Door Holder
Picture of 2400 Electromagnetic Door Holder Picture of 2400 Electromagnetic Door Holder

2400 Electromagnetic Door Holder

Flush Wall Mount with Standard Armature
$0.00

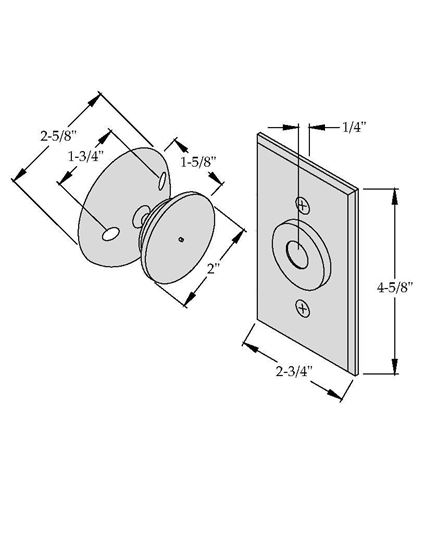

  • 1-7/8" total projection from wall to face of door (2-7/8" if using complimentary 1" extension)
  • Tri-voltage units for easy stocking and installation 12V DC, 24V AC/DC OR 120V AC
  • Provided with one complimentary 1" extension - No charge
  • Optional extension rods fill the gap between the magnet and door armature with no special adapter piece required
  • 35 lb. holding force
  • All metal components - No plastic parts
  • UL/ULC listed for smoke barrior or labeled fire doors
  • Listed by the California State Fire Marshall
  • Outlet box required (not provided)
  • Armature features two pivot points which each have 360° mobility to help door alignment and reduce installation time
  • Positive release button alleviates residual magnetism
  • Average with per unit = 2 lbs.
Picture for finish US28 - 628 - Satin Aluminum
US28 - 628 - Satin Aluminum
Picture for finish S1 - 689 - Painted Aluminum
S1 - 689 - Painted Aluminum
Picture for finish S2 - Painted Brass (to match US4)
S2 - Painted Brass (to match US4)
Picture for finish S3 - Painted Bronze (to match US10)
S3 - Painted Bronze (to match US10)
Picture for finish S4 - Painted Black
S4 - Painted Black
Picture for finish S5 - Painted Dark Bronze (to match US10B)
S5 - Painted Dark Bronze (to match US10B)
Picture for finish US32D - 630 - Satin Stainless Steel
US32D - 630 - Satin Stainless Steel
Picture for finish US32 - 629 - Bright Stainless Steel
US32 - 629 - Bright Stainless Steel
  • "T" - Custom Relay for 2100 "T" Mag Holder - Allows Timed Disconnect and Rese
  • "SEC" Fasteners
  • "THICK" Special Door Thickness
  • "RS" Rocker Switch
  • "THICK" Special Door Thickness
