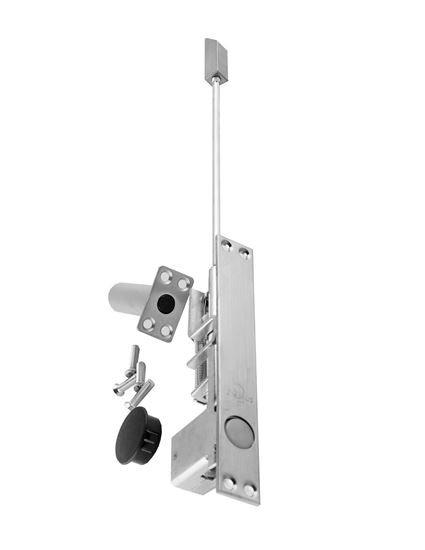

1865 Self Latching Top Flush Bolt with Bottom Fire Bolt

1865 Self Latching Top Flush Bolt with Bottom Fire Bolt

Metal Door, Self-Latching Top Bolt & Bottom Fire Bolt
$0.00
  • Material:
    • Brass, Stainless Steel

  • Fastener:
    • 8 ea. #8 x 3/4" FH Combo Screws, 4 ea. Plastic Anchors

  • Features:
    • Non-handed
    • Low (5 lbs. maximum) closing force
    • Self latching top bolt
    • Override feature prevents damage to doors or bolt if bolt head is blocked from entering strike
    • Bolt head rod is adjustable up to 1-1/2"
    • For fire rated metal doors labeled A, B, C, D, & E up to 4'w x 10'h
    • Thermal lock automatically locks the inactive door under high heat conditions due to fire
    • Bottom fire bolt eliminates need for floor prep
    • Oversize Fire Bolt strike hole allows for slight door misalignment
US32D - 630 - Satin Stainless Steel
US26D - 626 - Satin Chrome
S4 - Painted Black
US10 - 612 - Satin Bronze
US10B - 613 - Oil Rubbed Bronze
US3 - 605 - Bright Brass
US32 - 629 - Bright Stainless Steel
US4 - 606 - Satin Brass
  • "EXT-18" - 18” Rod Extension - Metal Doors
  • "EXT-24" - 24” Rod Extension - Metal Doors
  • "EXT-30" - 30” Rod Extension - Metal Doors
  • "EXT-36" - 36” Rod Extension - Metal Doors
  • "EXT-48" - 48” Rod Extension - Metal Doors
  • "SEC" - Fasteners
